Chain link assembly

Follow

Pete Stoppel

• February 25, 2019 19:47

Is it possible to make a chain link assembly that can be used along a path?

0

•

  Dale Martens

  • February 25, 2019 22:43

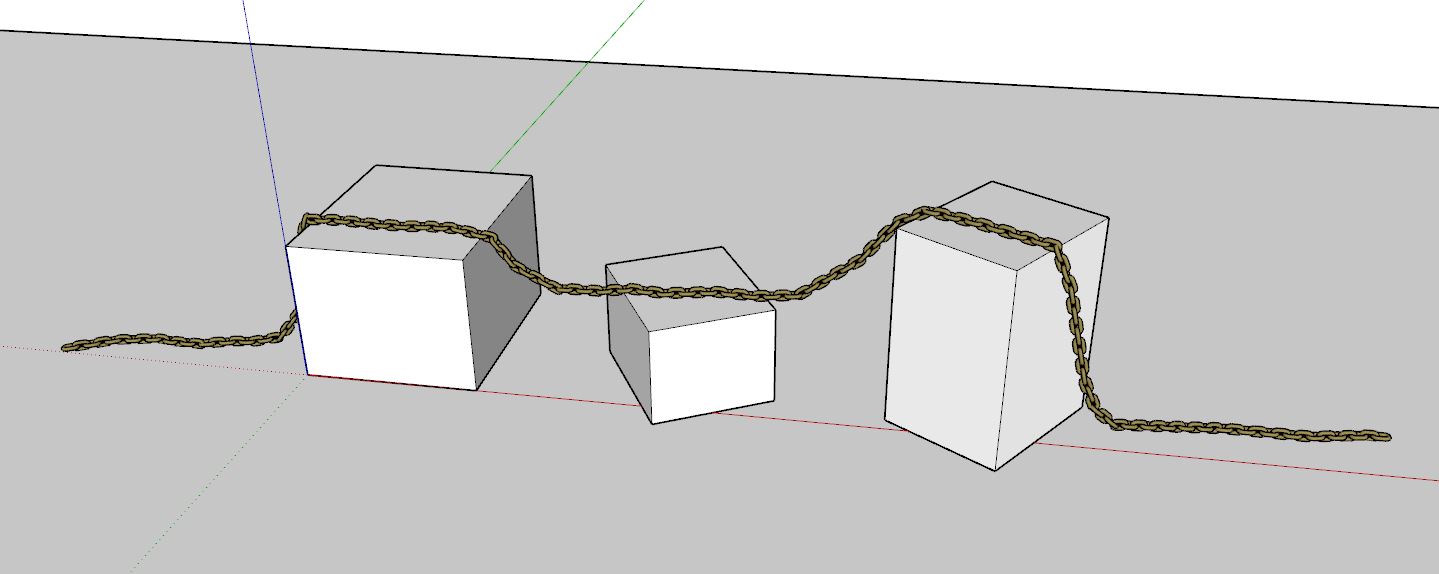

  Like this?



  1

  Comment actions Permalink
•

  Pete Stoppel

  • February 25, 2019 22:57

  Awesome!!! just what i need, works with clothworks path.



  Thank you so much.





  1

  Comment actions Permalink
•

  Alejandro Soriano

  • February 27, 2019 09:13

  Awesome, a really smart way to combine these two extensions! Congratulations!

  0

  Comment actions Permalink
•

  Pete Stoppel

  • March 17, 2019 13:32

  Dale, Is there any way I can scale the chains up in size without redoing it again?

  I tried to edit your assembly but I cannot get my head around it.



  0

  Comment actions Permalink
•

  Dale Martens

  • March 17, 2019 20:00

  This can be tricky.  Try this:

  • Scale up the chain links by double-clicking them and scaling the faces as needed
  • Adjust the spacing settings for the chain link components using the Assembly dialog
  • You might also have to adjust the setback settings for the components as well, depending on how the assembly was set up.

  0

  Comment actions Permalink
