Creating a Dentil Moulding Assembly

Follow

Jack

• February 12, 2026 19:23
• Edited

I have been trying to put together a dentil moulding assembly for ages, I can't seem to get the teeth on the moulding to maintain consistent spacing from one another horizontally even though I have the interval for the component placement set at a fixed distance.

One other issue I've been having is that the teeth will rotate when the assembly rounds a corner.

Any tips/tricks/insights would be very much appreciated, thanks!!

0

•

  Dale Martens

  • February 23, 2026 16:01

  Hi Jack - can you post an image of what you are trying to create?  Maybe I can share some tips then.

  0

  Comment actions Permalink
•

  Jack

  • February 24, 2026 16:07

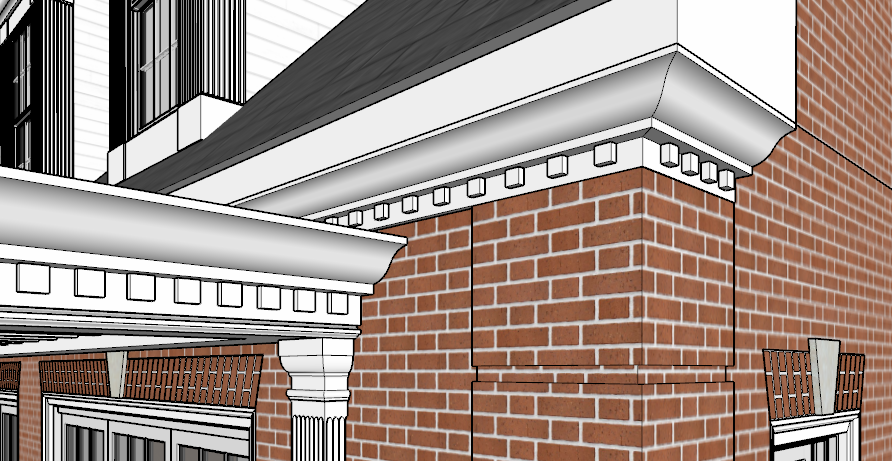

  Hi Dale- I have been able to create the assembly, but I am running into some issues with the component placement (the teeth on the molding) along the span. I have included a few images of the current assembly and some examples of the issues I'm running into.

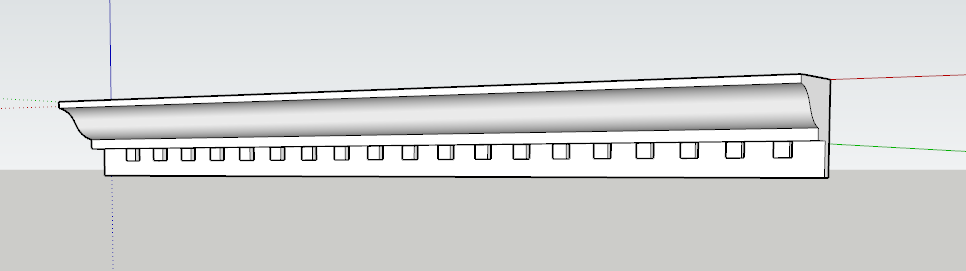

  1. It has a different offset distance from the beginning of the assembly span than it does the end of the span, even though in the Assembly Dialog they are set at equal distances.

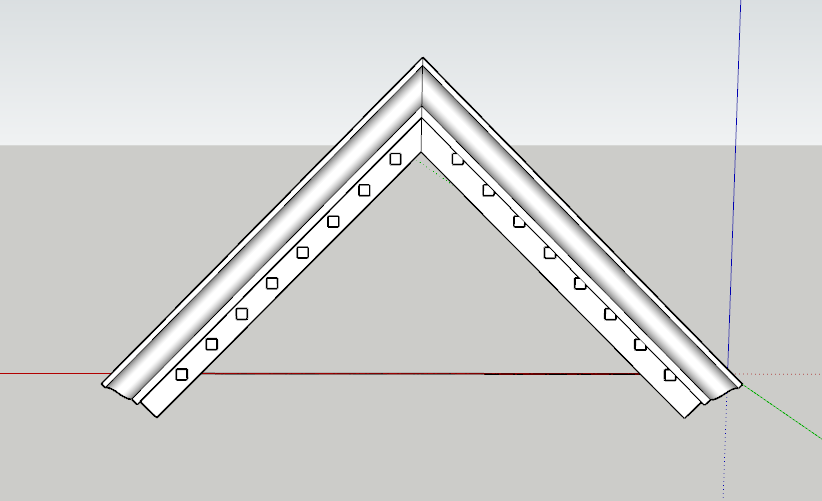

  2. The components don't rotate with the profile when I am drawing it along a vertical angle. I am specifically trying to draw a pediment with dentil molding.

  Any tips or tricks would be appreciated, thanks!!



  0

  Comment actions Permalink
•

  Dale Martens

  • February 27, 2026 16:25

  Here are some tips that should help you:

  1. For the teeth, ensure that the axes of the teeth component is at the center.  That should fix your offset problem.
  2. Also uncheck the setting for 'stay vertical' so that the component orientation will follow the slope.

  0

  Comment actions Permalink
•

  Jack

  • February 27, 2026 16:54

  These worked!! Thanks!!

  0
