Glasswall

Follow

Rune Lyngby

• October 09, 2019 12:30

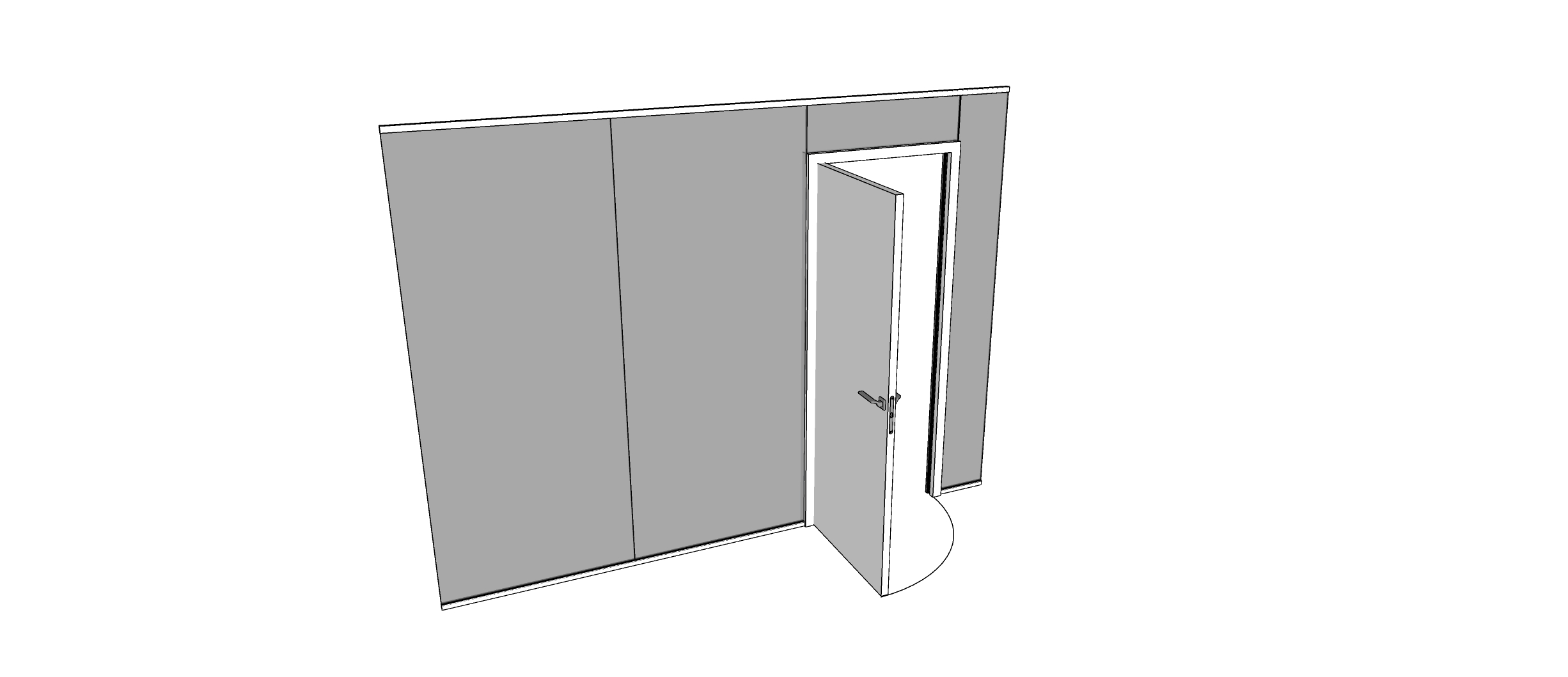

I made an assemly of profiles to make an office glasswall.

How can I make the glass limit to 1000mm with 0,5mm space before continuing?

I also plan to insert a door after every 2 m glass. How can I make such an assembly?



https://www.dropbox.com/s/ikprml7ix1b0zte/GlassWall.skp?dl=0

0

•

  Dale Martens

  • October 15, 2019 16:20

  Hi Rune,

  You should take a look at the 'spacer' technique shown in this video to create your glass panels with a 0.5mm gap.

  https://youtu.be/GiK6DE9ELHY

  I don't think you can easily include the door as part of the assembly.   I recommend adding the doors after you have created all of the walls in your model.  Some manual work will be required to insert the door and trim out the interfering glass.

  Hope this helps!

  0
