Edit the Assembly Attributes
Change the attributes of the assembly.
In this example, the spacing of the posts was changed from 6' to 4'. and the Layout was changed to 'From Middle'.
Select an Assembly in your Model
You can also select multiple assemblies to apply the attributes to all of the selected assemblies at once. You can also apply assembly settings to any Profile Members that are selected.
Click the 'Apply Assembly Attributes' button
Click the button to apply the current assembly settings to all selected assemblies.
Congratulations! You just applied attributes to an Assembly!
Live Editing Assembles
New in v4 is the ability to live edit assemblies. You can start live editing the selected assemblies using one of these methods:

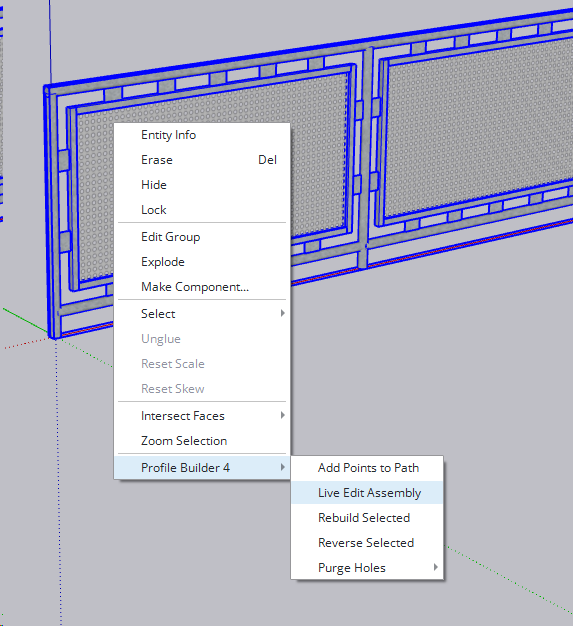

- Right click an assembly in your model and choose 'Live Edit Assembly' from the Profile Builder context menu
- Select at least one assembly in your model and double-click the 'Apply Assembly Attributes' button.

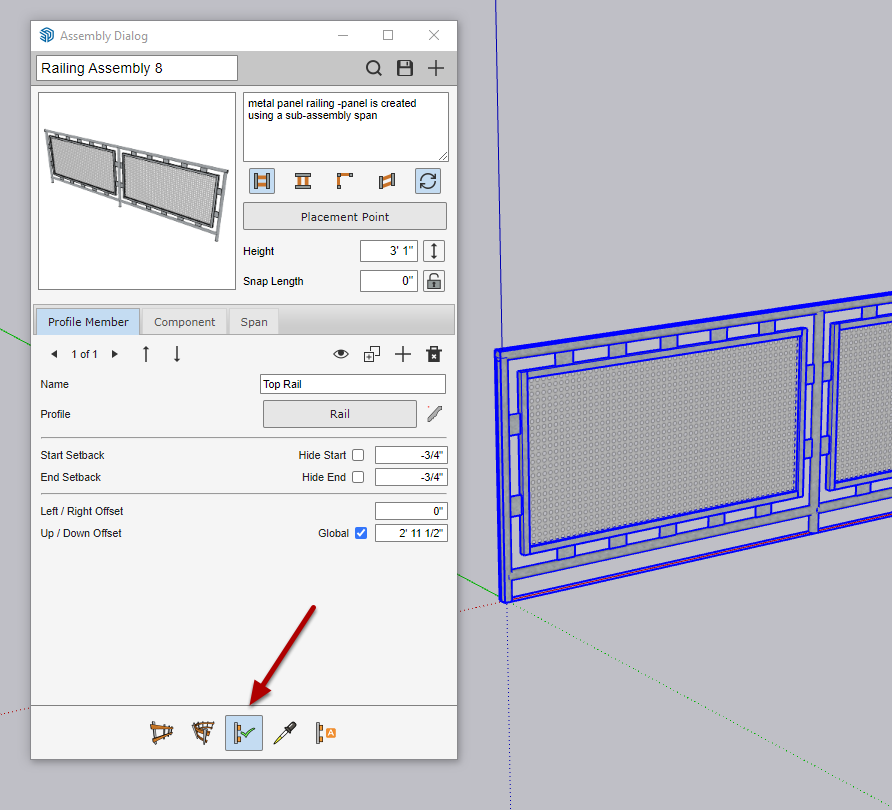

When Live Edit mode is activated, the 'Apply Assembly Attributes' button will stay highlighted as shown below. Now, you can make changes to the assembly settings and the selected assemblies will automatically be updated and rebuilt to reflect the current dialog settings.
