Launch the Tool
Click any Face in your model to trim to
Select the End of a Profile Member
The Profile Member does not need to be a solid.
Click on the end of a Profile Member to select it.
Continue clicking additional Profile Member ends for trimming if desired.
New in v4, you can now preselect multiple Profile Members for trimming before activating the tool. This allows you to trim several Profile Members to the same plane in a just a few clicks.
Press ESC to reset the tool.
Congratulations! You just trimmed a Profile Member to a Face!
Note: Trims will be maintained even if the Profile Member attributes or path is edited.

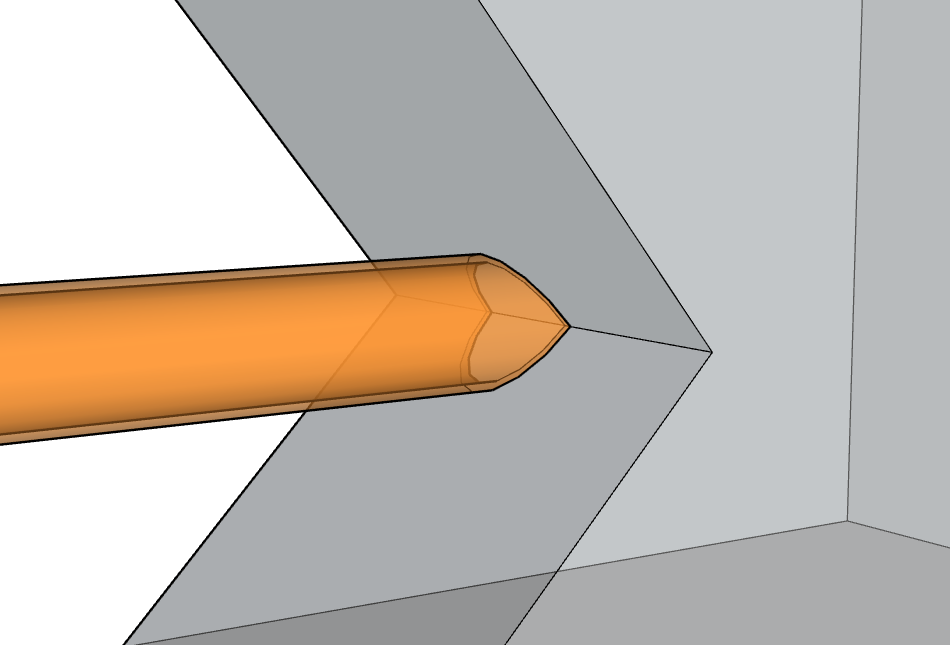

Trimming to Two Faces
New in v4, you can trim to two faces!
- Preselect Profile Members to be trimmed (optional).
- Activate the trim tool.
- Click the first face to trim to.

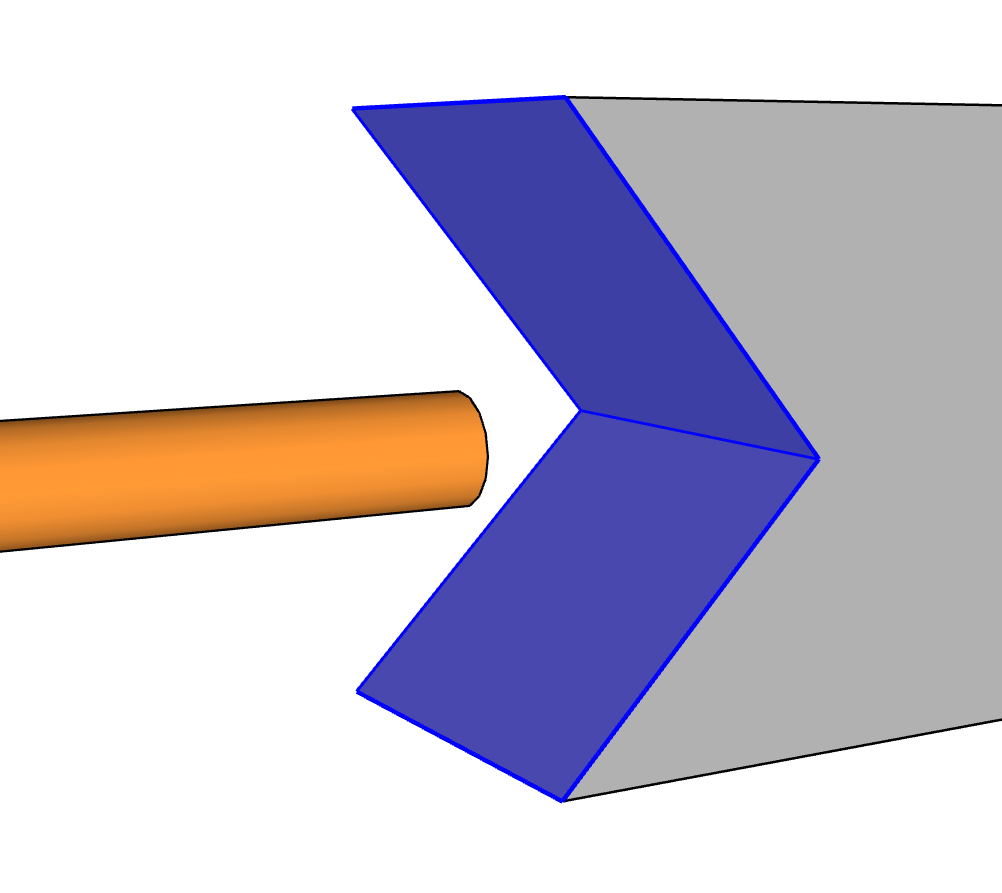

- Hold SHIFT and click a second face to trim to. Both faces should now be highlighted blue as shown in the image above.
- Release SHIFT and click the end of a Profile Member to trim. The end of the Profile Member becomes highlighted and an arrow appears near the end.
- Click to complete the trim.
- Continue clicking additional Profile Members to trim or press ESC to reset the tool.
